Tuam Tshoj PVC Ob Chav Union Brass Pob Valve Yas UPVC PVC Pob Valves 1 "Inch PVC Mf Pob Valve Hoobkas thiab manufacturers

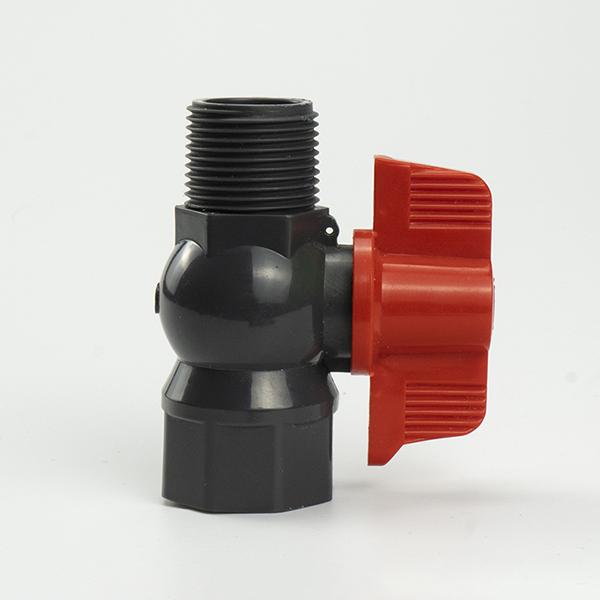

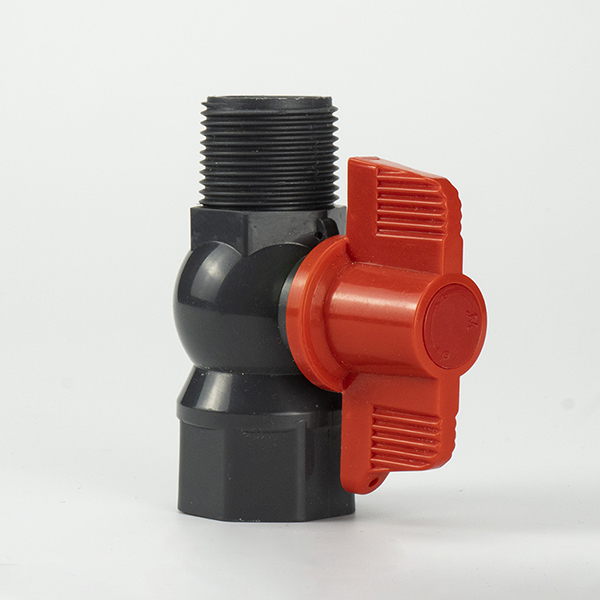

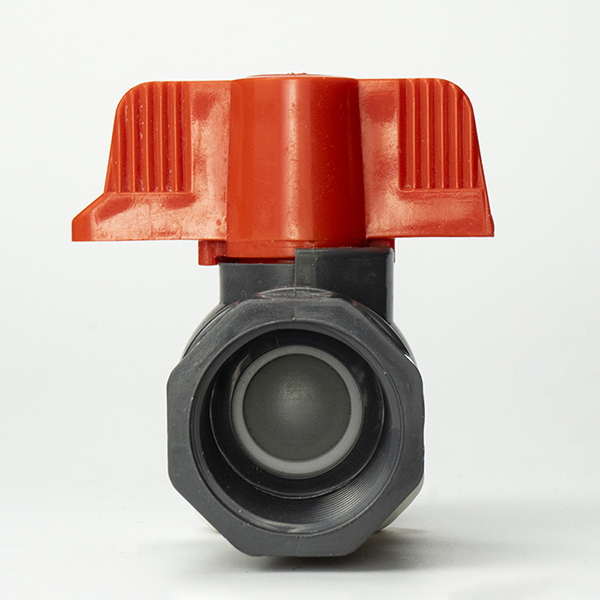

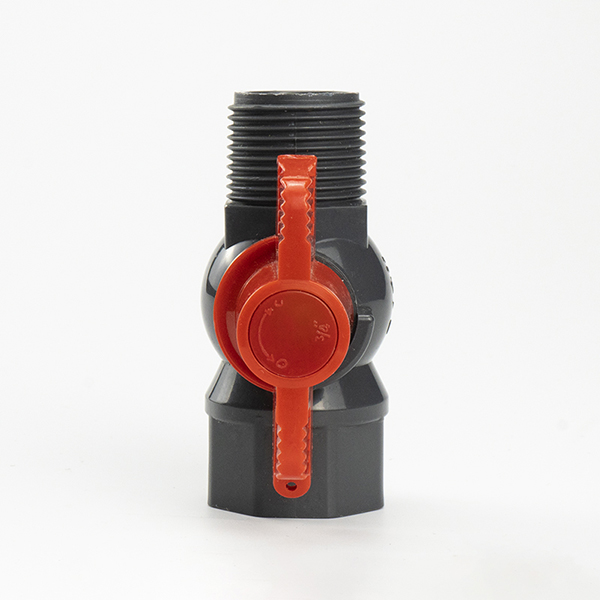

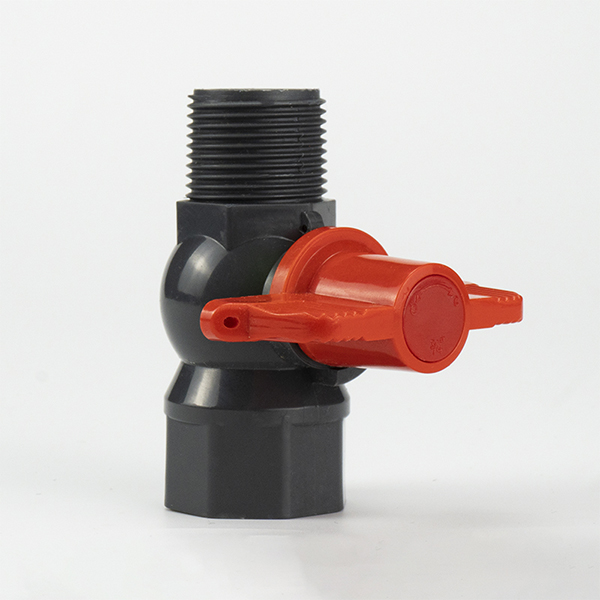

PVC Ob Chav Union Brass Pob Valve Yas UPVC PVC Pob Valves 1 "Inch PVC Mf Pob Valve

Lus piav qhia luv luv:

Hom:
Valve
Cov yeeb nkab loj:
3/4 "1" 1-1 / 2 "inch 2" "3" "4" nti
Khoom siv:
PVC
Cov qauv:
Valve, 1'inches, PVC
$0.10/Piece | 1 Daim (Min. Order)

Warranty::3 xyoo

Kev them nyiaj yug Customized::OEM, ODM

Txuj::CNS/JIS/DIN/BS/ANSI/NPT/BSPT

Xa email rau peb

Product Detail

FAQ

Khoom cim npe

Devices parameters

Hom Lub Npe: PNTEK
Siv: Kev ua liaj ua teb irrigation / Mariculture / pas dej da dej / Kev tsim kho engineering
Xim: Ntau xim muaj rau xaiv
Khoom siv: UPVC
Kub ntawm Media: Kub kub, tsis tshua muaj kub, nruab nrab kub, kub li qub
Lub neej khoom::> 500,000 Sijhawm Qhib & Kaw

Product Description

Peb lub tuam txhab lub pob valve tuaj yeem tiv taus corrosion zoo heev, yog li nws cov kev pabcuam lub neej tuaj yeem txuas ntxiv tau zoo, thiab cov khoom nws tus kheej hloov tau yooj yim thiab yooj yim, nrog lub zog siab thiab tsis tshua muaj paug, yog li nws tau qhuas los ntawm cov neeg siv khoom. Lawv tau dav siv nyob rau hauv kev lag luam thiab pej xeem lub tsev, nrog rau sab hauv tsev thiab tawm qhov rooj,
Cov kav dej phwj tuaj, cov tshuaj tiv thaiv corrosion thiab kuj tuaj yeem siv rau kev ua liaj ua teb irrigation.

Dhau li ntawd, lawv kuj tsim nyog rau qhov cua qhov yeeb nkab thiab cov kav dej, thiab lwm yam.Peb muaj ntau qhov sib txawv ntawm cov khoom txawm rau ib yam khoom, rau qhov sib txawv daim ntawv thov. 100% xau kuaj kom paub tseeb tias cov khoom koj tau txais yog qhov zoo. Yuav muaj kev tshuaj xyuas cov khoom ib txwm muaj thaum tsim khoom kom paub tseeb tias cov khoom tau ncav cuag tus qauv thoob ntiaj teb.
Raws li kev faib ua feem ntawm cov kav dej yas hauv cov dej kub thiab dej txias thiab kev siv cov yeeb nkab engineering txuas ntxiv mus ntxiv, kev tswj xyuas cov yas zoo li qub hauv cov yeeb nkab yas yog qhov tseem ceeb zuj zus.

Khoom zoo

1, Lub teeb yuag thiab siab zog
2. Tsis muaj suab nrov thaum nws siv
3. Yooj yim qhib thiab kaw
4. Compact pob valve yog ib qho yooj yim rau nruab
5. Tsawg tshaj tawm tus nqi, 100% kuaj ua ntej packing
6. Cov dej tsis kam yog me me
7. Cov khoom siv ntawm lub pob valve: ABS, lub cev khoom: PVC
8. Alkali thiab acid tsis kam
9. Cov xim mos thiab tsim tau zoo heev
10. Ib puag ncig tus phooj ywg, tsis muaj tshuaj lom
11. Widly siv nyob rau hauv lub neej txhua hnub: kev tsim kho, ua liaj ua teb irrigation, kev lag luam, vaj, pas dej ua ke ...
12. Cov pob valve no muaj qhov ntau thiab tsawg ntawm 20mm txog 110mm (ntawm 1/2 '' txog 4 '')
13. Xim Muaj: Ntsuab, grey, dawb, xim av, xiav
14. Daim ntawv pov thawj: ISO 9001, Tuam Tshoj xeem

Lus dab neeg thiab daim ntawv qhia lub cev

ib qho kev tsim tawm

Cov khoom siv

specification ntawm cov khoom

TSIS MUAJ.	Ib feem	Khoom siv	QTY
1	Lub cev	UPVC, CPVC	1
2	STEM O-Ring	EPDM, FPM (NBR)	1
3	STEM	UPVC, CPVC	1
4	PIB	UPVC, CPVC	1
5	SEAT SEAL	TPE, TPVC, TPO	2
6	CAP	PVC, ABS	1
7	KUB	PVC, ABS	1
8	SCREW	SS304, hlau	1

Model size parameter sib piv cov lus

DIMENSION												Chav tsev
Qauv	DN		15	20	25	32	40	50	65	80	100
	SIZE		1/2 "	3/4 "	1"	1-1/4 "	1-1/2 "	2"	2-1/2 "	3"	4"	Ntiv
	thd./ ib	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./ ib	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	23	25	27	31	34	45	50	55	mm
		d1	22.3	26.3	32.33 Nws	38.43 Nws	48.46 ib	60.56 ib	76.6 ib	89.6 ib	114.7 ib	mm
		d2	21.7 ib	25.7 ib	31.67 Nws	37.57 Nws	47.54 ib	59.44 ib	75.87 ib	88.83 ua	113.98 Nws	mm
	ANSI	I	20	23	25	27	31	34	45	50	55	mm
		d1	21.54 Nws	26.87 Nws	33.65 Nws	42.42 ib	48.56 ib	60.63 ib	73.38 ib	89.31 ib	114.76 ib	mm
		d2	21.23 Nws	26.57 Nws	33.27 Nws	42.04 Nws	48.11 Nws	60.17 Nws	72.85 ib	88.7 ua	114.07 Nws	mm
	DIN	I	20	23	25	27	31	34	45	50	55	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3 ib	75.3 ib	90.3 ua	110.4 ib	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		30	35.5 ib	43	52	62	75	91	106	130	mm
